Descriere

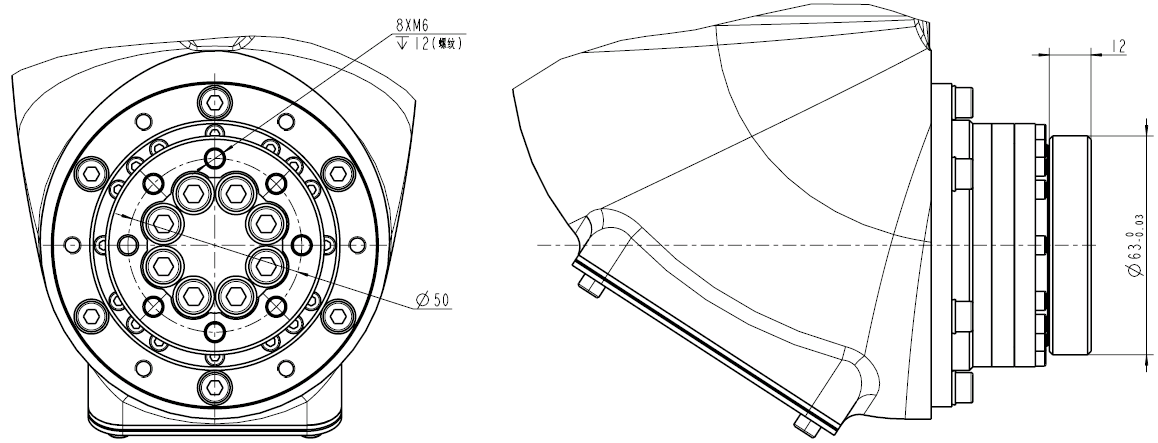

- No front singularity wrist construction, optional built-in pipeline, making synchronous tracking spraying teaching job easier.
- Using bus-structure, convenient for expansion and high speed
Shop
10kg Payload 2035mm Reaching Distance China Pick And Place Sorting Machine Tending Robotic Arm EVS
QJAR 10kg payload explosion-proof China pick and place robot. It’s with bus structure and covenient for expansion and high speed….
Item No.: QJRP10-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days
Informații suplimentare
| Model: | QJRP10-1 |
|---|---|
| Axis Number | 6 |
| Payload | 10kg |
| Repeat Positioning | ±0.5mm |

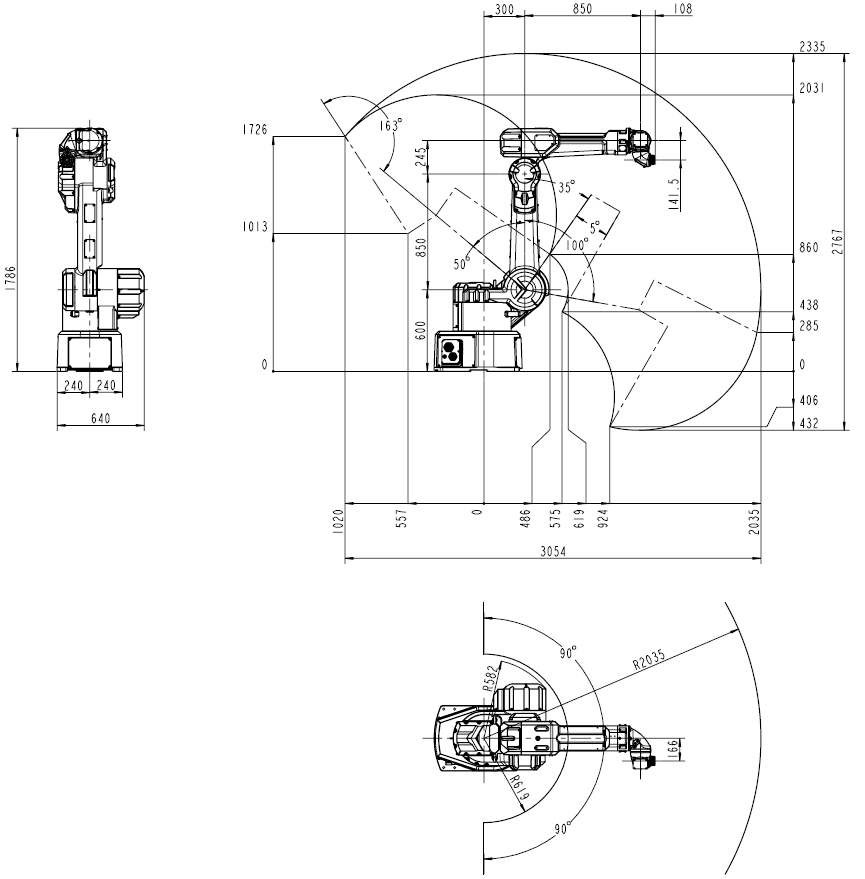

| Max Armspan | 2035mm |
| Motion Range | J1 ±95º J2 ﹢102º,﹣53º J3 ﹢87º,﹣80º J4 ±260º J5 ±270º J6 ±260º |
| Max Speed | J1 109º/s J2 126º/s J3 109º/s J4 361º/s J5 361º/s J6 361º/s |
| Allowable Torque | J4 30.4N.m J5 19.6N.m J6 9.8N.m |
| Inertia Moment | J4 0.97kg.m² J5 0.4kg.m² J6 0.1kg.m² |
| Robot Body Weight | 370kg |
| Power Capacity | 3.9kVA |
| Cabinet Size | 650*750*1150mm |
| Cabinet Weight | 120kg |
| Source | Three-phase four-wire |

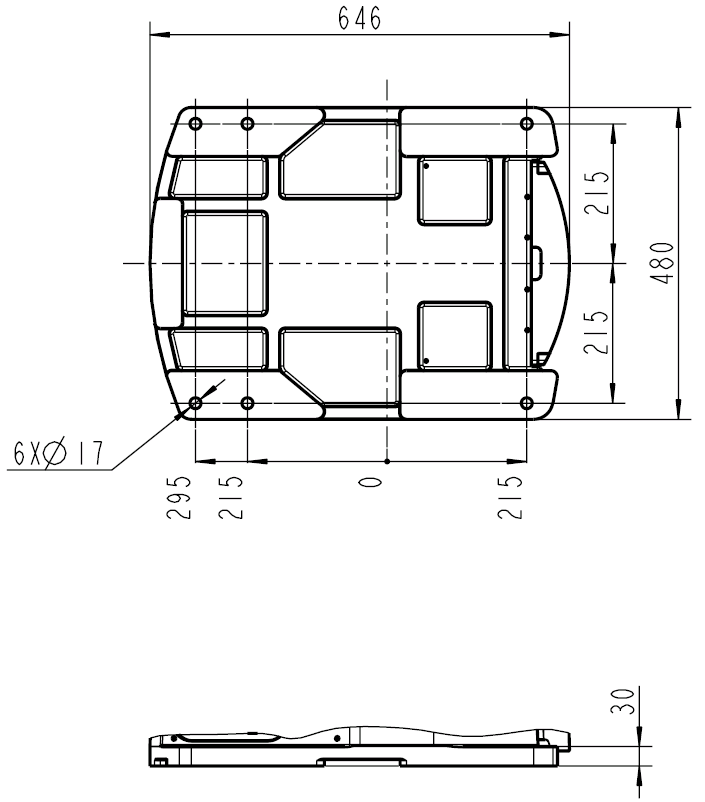

| Installing Form | Ground |
