180kg Payload 3153mm Reaching Distance China Palletizing Punching Machine Robotic Arm EVS

QJAR big-payload 4 axis robot. It is with high speed and high stability….
Item No.: QJRB180-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

Descriere

  • High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
  • 180kg payload 3153mm reach robotic arm widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.

Informații suplimentare

Model:

QJRB180-1

Axis Number

4

Payload

180kg

Repeat Positioning

±0.05mm

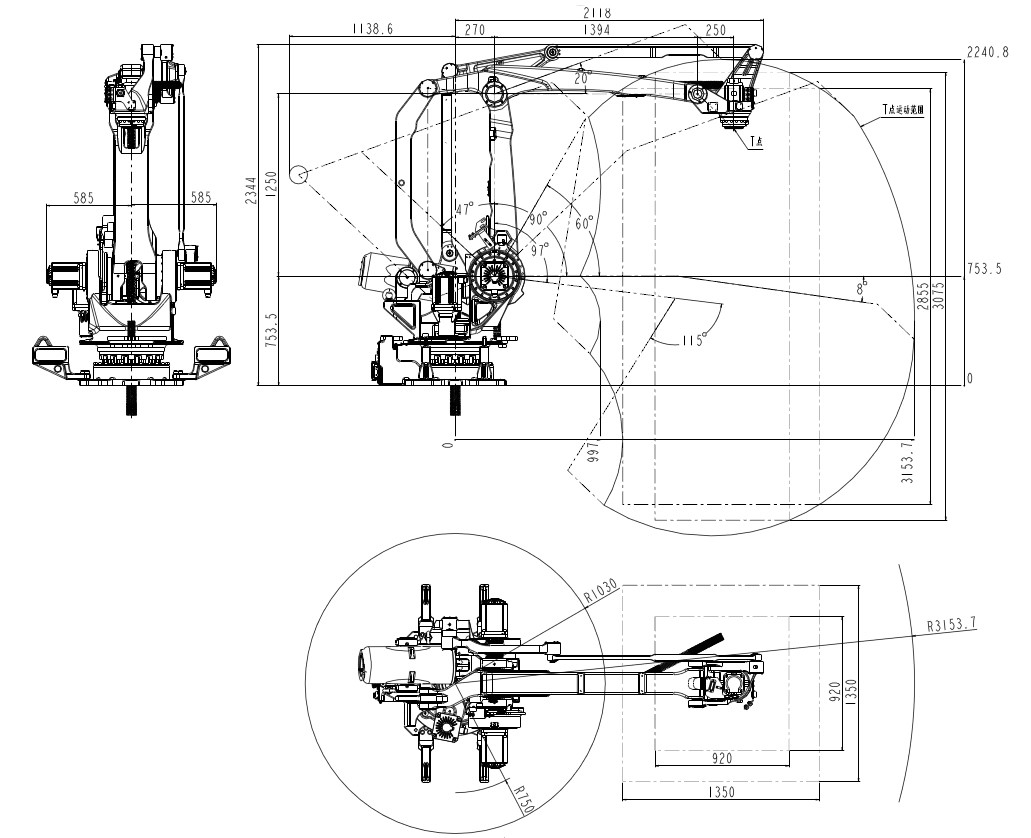

Max Armspan

3153.7mm

Motion Range

J1 ±170º J2 ﹢95º,﹣47º J3 ﹢112º,﹣20º J4 ±360º J5 _ J6 _

Max Speed

J1 129º/s J2 132º/s J3 132º/s J4 298º/s J5 _ J6 _

Allowable Torque

J4 _ J5 _ J6 _

Inertia Moment

J4 3.25kg.m² J5 _ J6 _

Robot Body Weight

1400kg

Power Capacity

17.5kVA

Cabinet Size

650*750*1150mm

Cabinet Weight

140kg

Source

One-Three-phase five-wire

Installing Form

Ground
