20kg Payload 1671mm Reaching Distance China Pick And Place Robotic Arm EVS

QJRB20-1 is with a simple and compact mechanical strucutre. The fisrt national certified spraying robot with explosion-proof function in China….
Item No.: QJRB20-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

Descriere

  • QJRB20-1 is the first national certified spraying robot with an explosion-proof feature on the market.
  • Through the optimization of the structure of the vertical multi-joint robot, it has a simple and compact mechanical structure.
  • High running speed, high repeat positioning accuracy, suitable for palletizing, handling, loading and unloading, laser cutting, spraying, polishing, and other wide range of applications.

Informații suplimentare

Model:

QJRB20-1

Axis Number

6

Payload

20kg

Repeat Positioning

±0.05mm

Max Armspan

1671mm

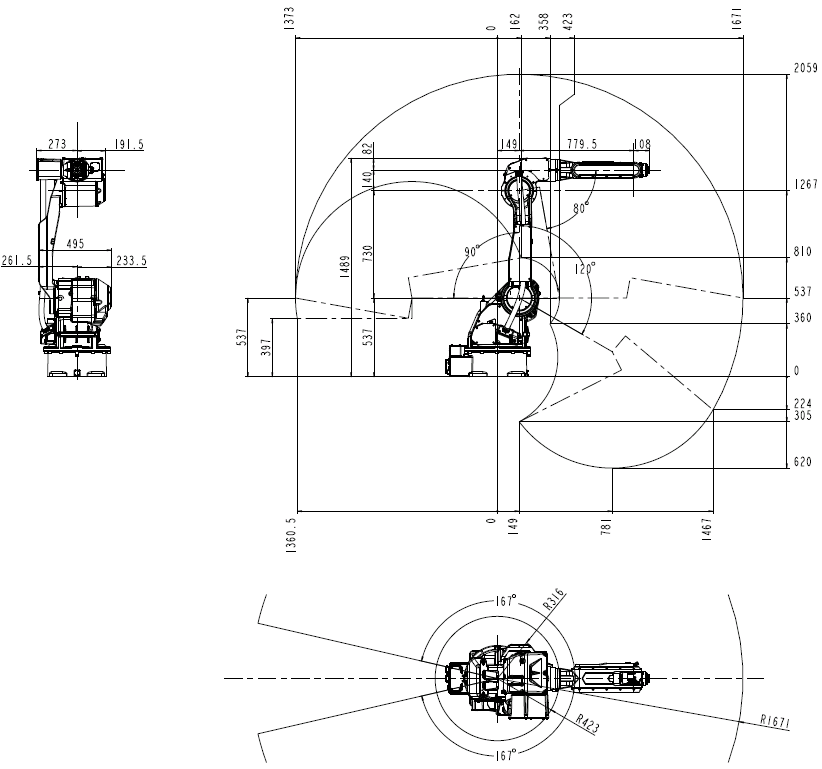

Motion Range

J1 ±172º J2 ﹢158º,﹣110º J3 ﹢83º,﹣92º J4 ±170º J5 ±125º J6 ±360º J6 ±360º

Max Speed

J1 150º/s J2 150º/s J3 150º/s J4 281º/s J5 292º/s J6 372º/s

Allowable Torque

J4 38.81N.m J5 38.81N.m J6 29.4N.m

Inertia Moment

J4 3kg.m² J5 3kg.m² J6 2.2kg.m²

Robot Body Weight

270kg

Power Capacity

3.6kVA

Cabinet Size

580*600*960mm 650*750*1150mm

Cabinet Weight

130kg/120kg

Source

Three-phase four-wire

Installing Form

Ground, Ceiling
