30kg Payload 1820mm Reaching Distance China Stamping Machine Tending Robotic Arm EVS

QJAR high-speed and stable 4 axis robot. Simple equipment composition can be used with special palletizing software….
Item No.: QJRB30-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

Descriere

  • High-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.
  • 30kg payload 1820mm reach robotic arm widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.

Informații suplimentare

Model:

QJRB15-1

Axis Number

4

Payload

15kg

Repeat Positioning

±0.05mm

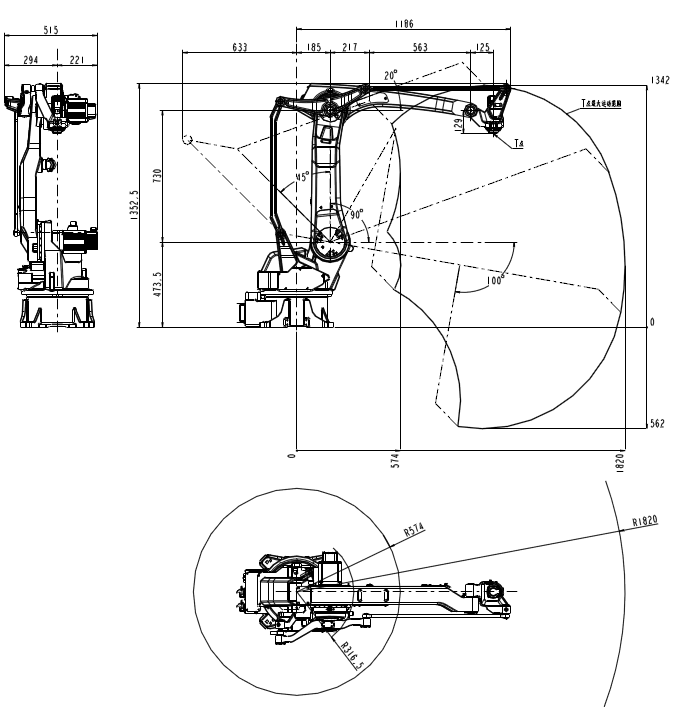

Max Armspan

1510mm

Motion Range

J1 ±168º J2 ﹢105º,﹣50º J3 ﹢105º,﹣25º J4 ±360º J5 _ J6 _

Max Speed

J1 195º/s J2 195º/s J3 229º/s J4 544º/s J5 _ J6 _

Allowable Torque

J4 29.4N.m J5 _ J6 _

Inertia Moment

J4 0.6kg.m² J5 _ J6 _

Robot Body Weight

160kg

Power Capacity

2.7kVA

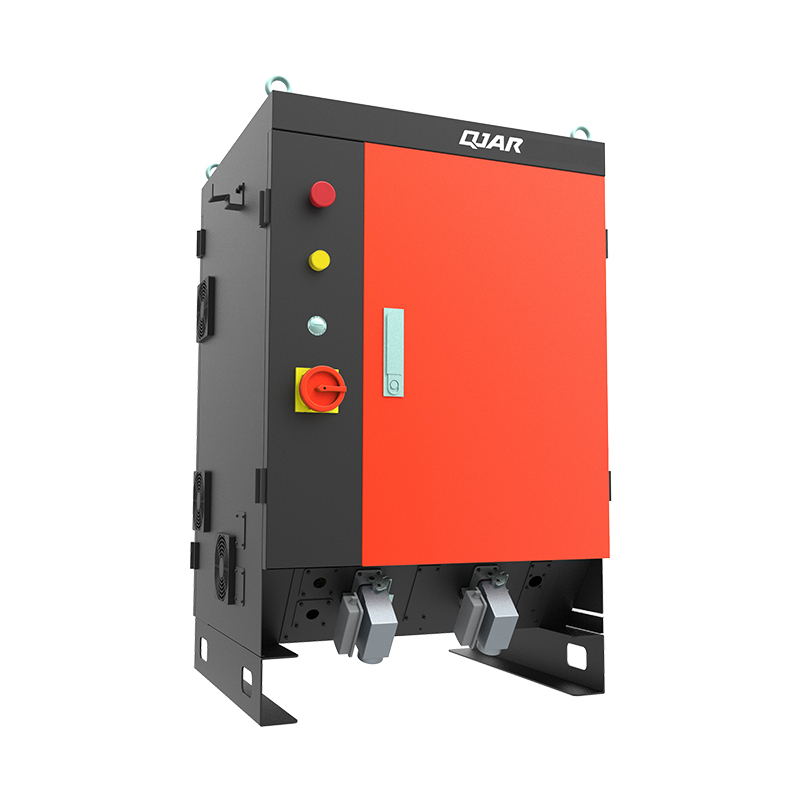

Cabinet Size

580*600*960mm

Cabinet Weight

100kg

Source

One-phase

Installing Form

Ground
