Ceiling-mounted SCARA increases assembly flexibility

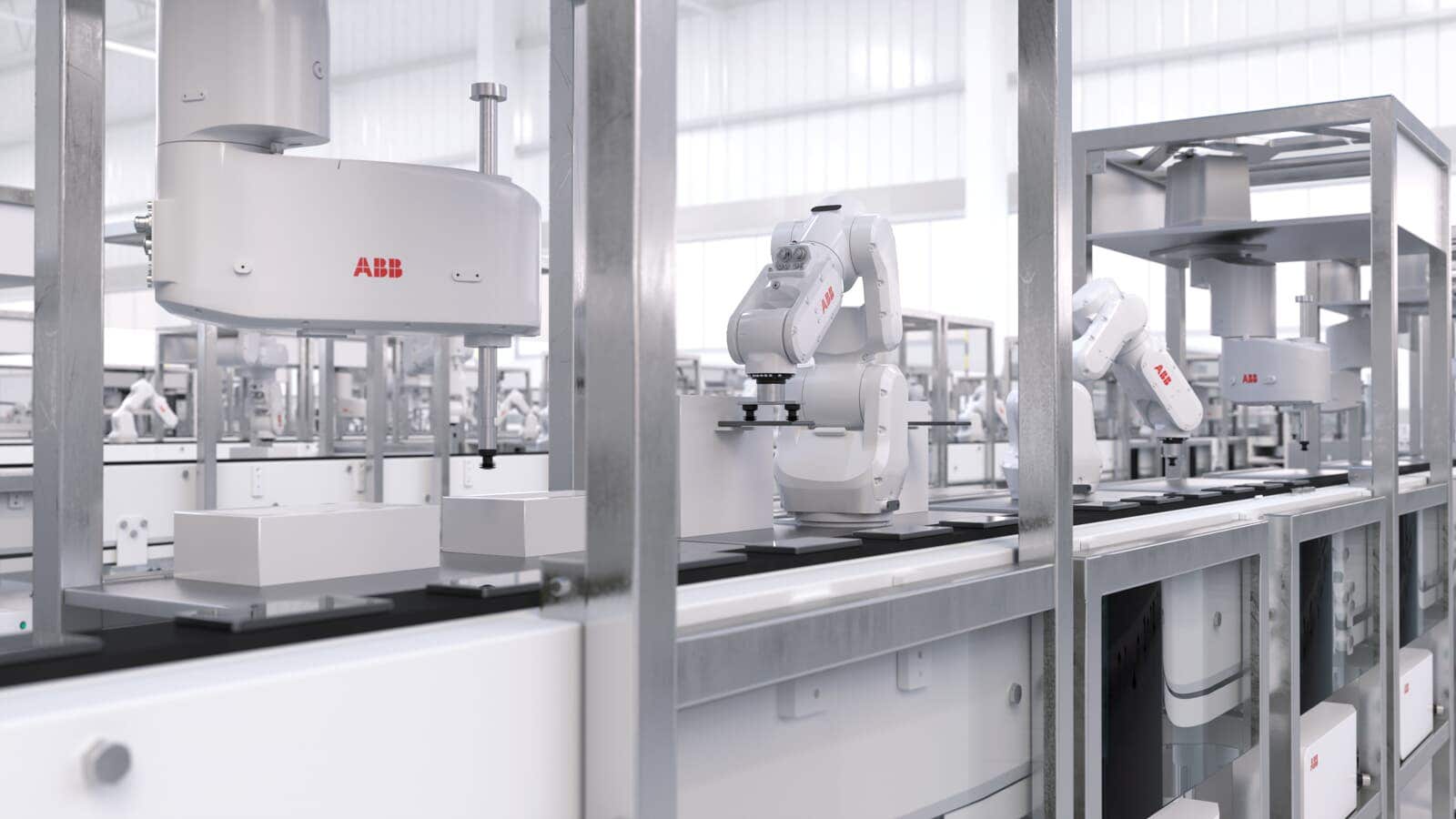

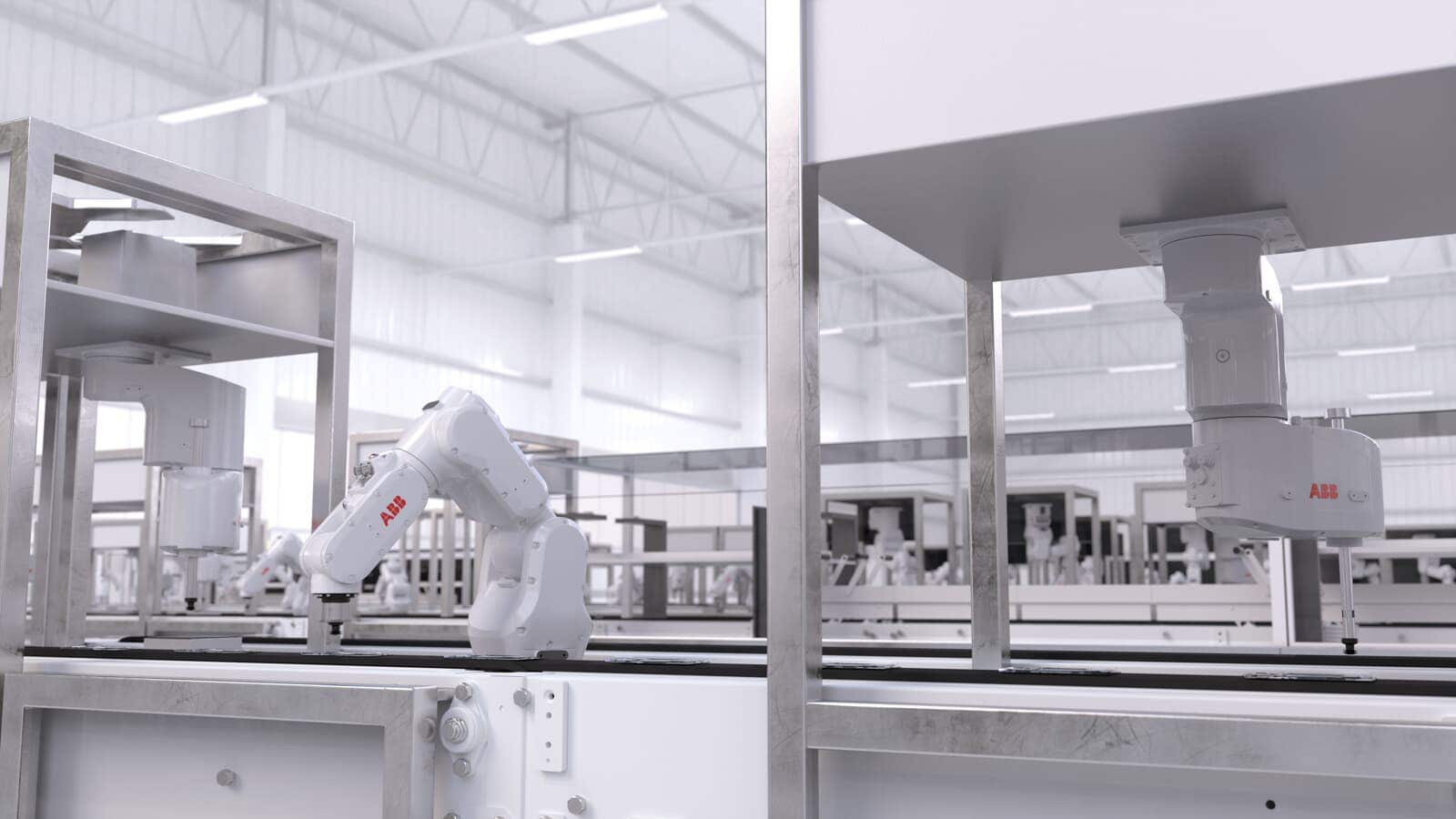

ABB’s new ceiling-mounted IRB 910INV robot is designed to increase the space efficiency and flexibility of each cell and support the performance of complex tasks even in confined spaces. By mounting the IRB 910INV on the ceiling, manufacturers can increase the space efficiency and flexibility of each cell and do more complex tasks even in confined spaces. Moreover, the IRB 910INV robot can collaborate with other robots and machines, substantially boosting productivity.
Powered by an ABB OmniCore controller, the IRB 910INV robot offers the best-in-class motion control for repeatable point-to-point accuracy during pick-and-place, assembly, and testing applications. This includes electronics small parts assembly tasks such as screw driving, component inserting or mounting, and automated quality control inspections.
The IRB 910INV offers clean room ISO1 as option. Moreover, the compact and lightweight robot is available in two variants – one with a maximum payload of 3 kg and a 350 mm reach, and one with a maximum payload of 6 kg and a 550 mm reach.
Scara IRB 910INV, Data Sheet – English (PDF)
